RS-190TA1

Commercial type

R410A refrigerant, environmental friendly

Tube in shell heat ex-changer, Hi-COP & safety

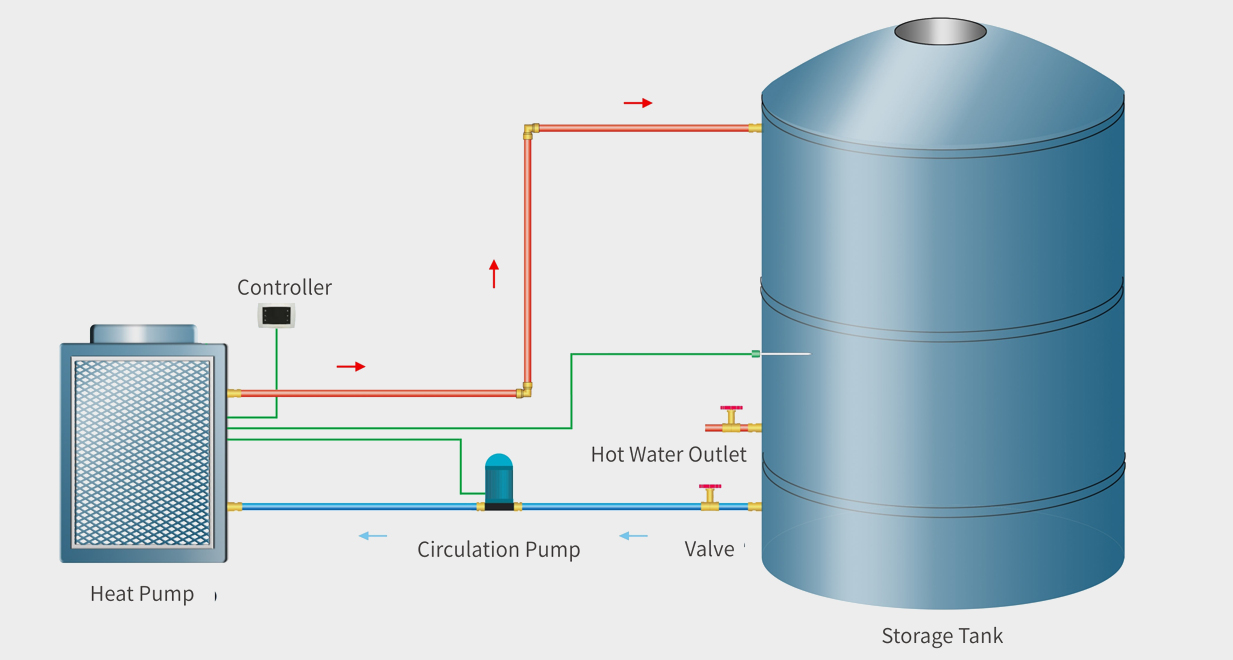

Through different installation, the system can be used for cooling, heating and providing sanitary hot water

GET A FREE QUOTE VIEW DATA

DESCRIPTION

·R410A refrigerant, environmental friendly.

·Higher water temperature output up to 60ºC.

·Tube in shell heat ex-changer, Hi-COP & safety.

·With sterilization function (tank with electric heater)

·High pressure protection.

·Defrost automatically.

·MODBUS communication.

·Full automatically operation.

·Through different installation, the system can be used for cooling, heating and providing sanitary hot water.


PRODUCT DESCRIPTION

Model RS-190TA1
Power Supply 380V/3/50Hz
Heating Capacity (kW) 190
Power Input (kW) 44.4
COP 4.28
Max Power Input (kW) 66
Max Current (A) 110
Rated Hot Water (L/h) 4000
Refrigarant R410a
Compressor Scroll
Expansion Valve Electronic
Air Flow Direction Vertical
Water Pressure Drop (kPa) 55
Dimensions (mm) 2248*2148*2176
Working temperature range (℃) -25~43
Noise (dB) ≤76
Net Weight (kg) 1600
